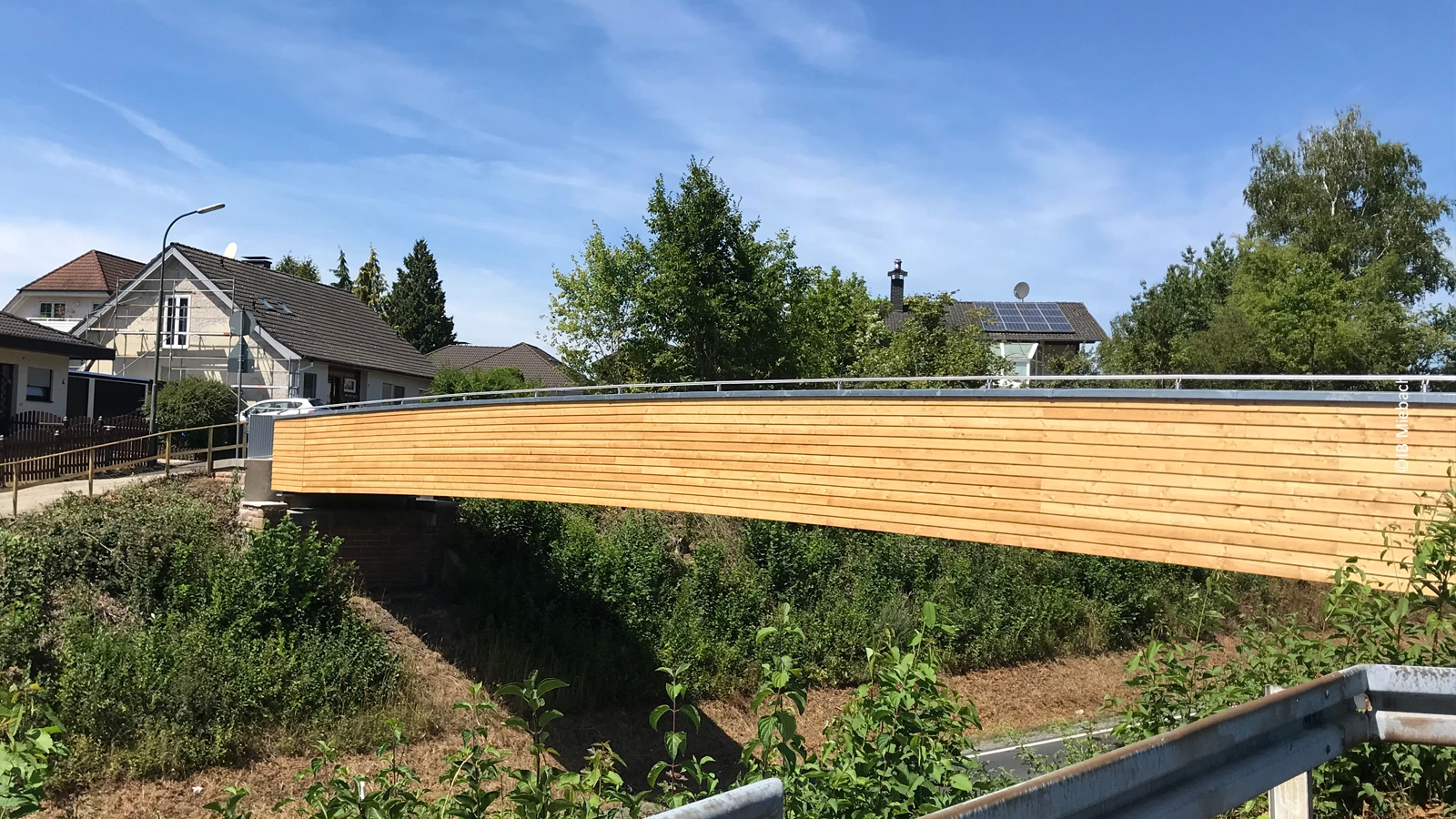

Trough bridge on existing abutments
Description
The former truss bridge connecting Steinkaute with Schlehenring could no longer be renovated for economic reasons. It was therefore completely demolished, with the exception of the load-bearing bearing structures.
In order to provide residents with a barrier-free and safe crossing over the busy L 3329 road, the town of Schlüchtern commissioned the construction of a replacement bridge.
In 2018, an almost identical foot and cycle bridge over the Kinzig river, leading to the sports field, was opened about one kilometre further on. Even then, this new construction impressed with its modern design and functional permeability.
Year of construction
2022
Client
Magistrate of the City of Schlüchtern
Planning
Ingenieurbüro Miebach, Lohmar
Timber construction and renovation
Schmees & Lühn Holz- und Stahlingenieurbau GmbH & Co. KG
Dimensions
Length: approx. 25.40 m
Span: approx. 24.70 m
Width: approx. 2.50 m
Construction
Trough bridge on existing abutments with glass fibre reinforced plastic (GRP planks) decking, wedge pile formwork (partially hinged or reversible) and stainless steel railings.
Deck
Glass fibre reinforced plastic (GRP planks on road slab)
Railing
Stainless steel handrail
Substructures Existing
abutments from 1994 with bearing brackets made of steel profiles set in concrete.
Our services
Service phases 1 – 9
